3-D Earth in the making

A thorough understanding of the 'solid Earth' system is essential for deciphering the links between processes occurring deep inside Earth and those occurring nearer the surface that lead to seismic activity such as earthquakes and volcanic eruptions, the rise of mountains and the location of underground natural resources. Thanks to gravity and magnetic data from satellites along with seismology, scientists are on the way to modelling inner Earth in 3-D.

Top left: Earth's topography; bottom: gravity gradients as measured by ESA’s GOCE satellite.
Right: depth slices through LithoRef18 (Afonso et al.). Colours represent density variation
 in crust and upper mantle, where blue represents denser material and red represents
less dense material. The animation is not to scale [Credit: Density values from
 LithoRef18 (Afonso et al.) and gravity gradients from Bouman et al. (2016)]

Solid Earth refers to the crust, mantle and core. Because these parts of our world are completely hidden from view, understanding what is going on deep below our feet can only be done by using indirect measurements.

New results, based on a paper published recently in Geophysical Journal International and presented at this week's Living Planet Symposium, reveal how scientists are using a range of different measurements including satellite data along with seismological models to start producing a global 3-D Earth reference model.

The model will make a step change in being able to analyze Earth's lithosphere, which is the rigid outer shell, and the underlying mantle to understand the link between Earth's structure and the dynamic processes within.

Juan Carlos Afonso, from Australia's Macquarie University and Norway's Centre for Earth Evolution and Dynamics, said, "We are realising the new global model of Earth's lithosphere and upper mantle by combining gravity anomalies, geoid height, and gravity gradients complemented with seismic, thermal, and rock information."

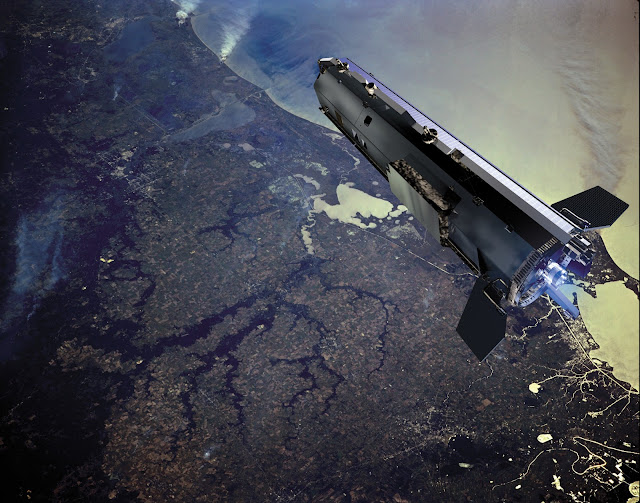

ESA's GOCE mission will measure high-accuracy gravity gradients and provide global models of the Earth's gravity
 field and of the geoid. The geoid (the surface of equal gravitational potential of a hypothetical ocean at rest)
serves as the classical reference for all topographical features. The accuracy of its determination is important
 for surveying and geodesy, and in studies of Earth interior processes, ocean circulation, ice motion
 and sea-level change [Credit: AOES Medialab]

Wolfgang Szwillus from Kiel University, added, "Data from ESA's GOCE satellite mission served as input for the inversion. It is the first time that gravity gradients have been inverted on a global scale in such an integrated framework."

While this is just a first step, 3-D Earth offers tantalizing insights into the deep structure of our world. For example, the new models of the thickness of the crust and the lithosphere are important for unexplored continents like Antarctica.

Jorg Ebbing from Kiel University, noted, "This is just a first step so we have more work to do, but we plan to release the 3-D Earth models in 2020."

The 3-D Earth research, which involves scientists from nine institutes in six European countries, is funded through ESA's Science for Society programme. ESA's GOCE gravity mission and Swarm magnetic field mission are key to this research.

Source: European Space Agency [May 16, 2019]
